CAD/CAM nesting for steel yield
Custom shapes and heavy component runs are planned with nesting discipline so profile geometry, plate size, scrap percentage, and repeat quantity are visible before cutting starts.
Menu
Precision CNC plasma cutting facility
CNC plasma and oxy-fuel plate cutting.
We cut plate profiles from your drawing for fabricated assemblies, machinery and industrial projects.
ISO 9001 certified EN ISO 3834-2 certified
Made in Chakan, Pune3000 x 12000 mmAutomated cutting bed envelope.
20 mm MSCNC plasma cutting discussion threshold.
150 mm MSOxy-fuel cutting capacity for heavy plate work.
Drawing-ledCutting tolerance confirmed against the job.
Inside Naxos

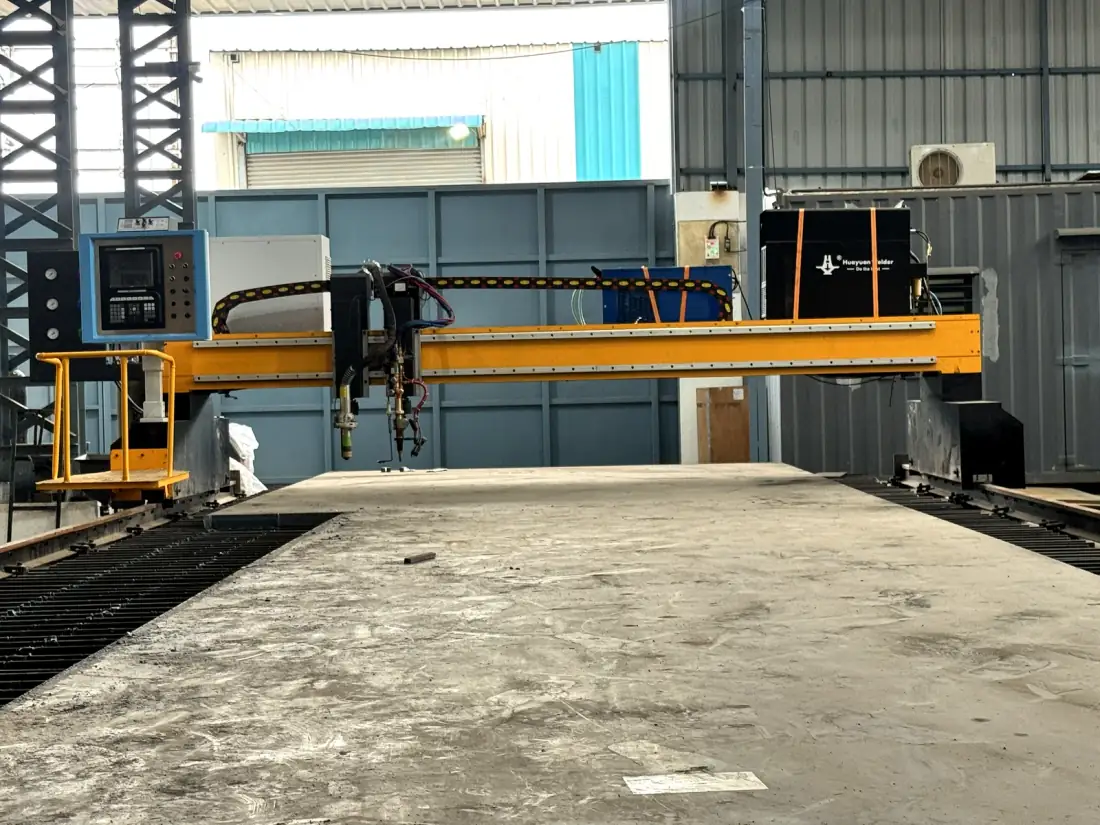

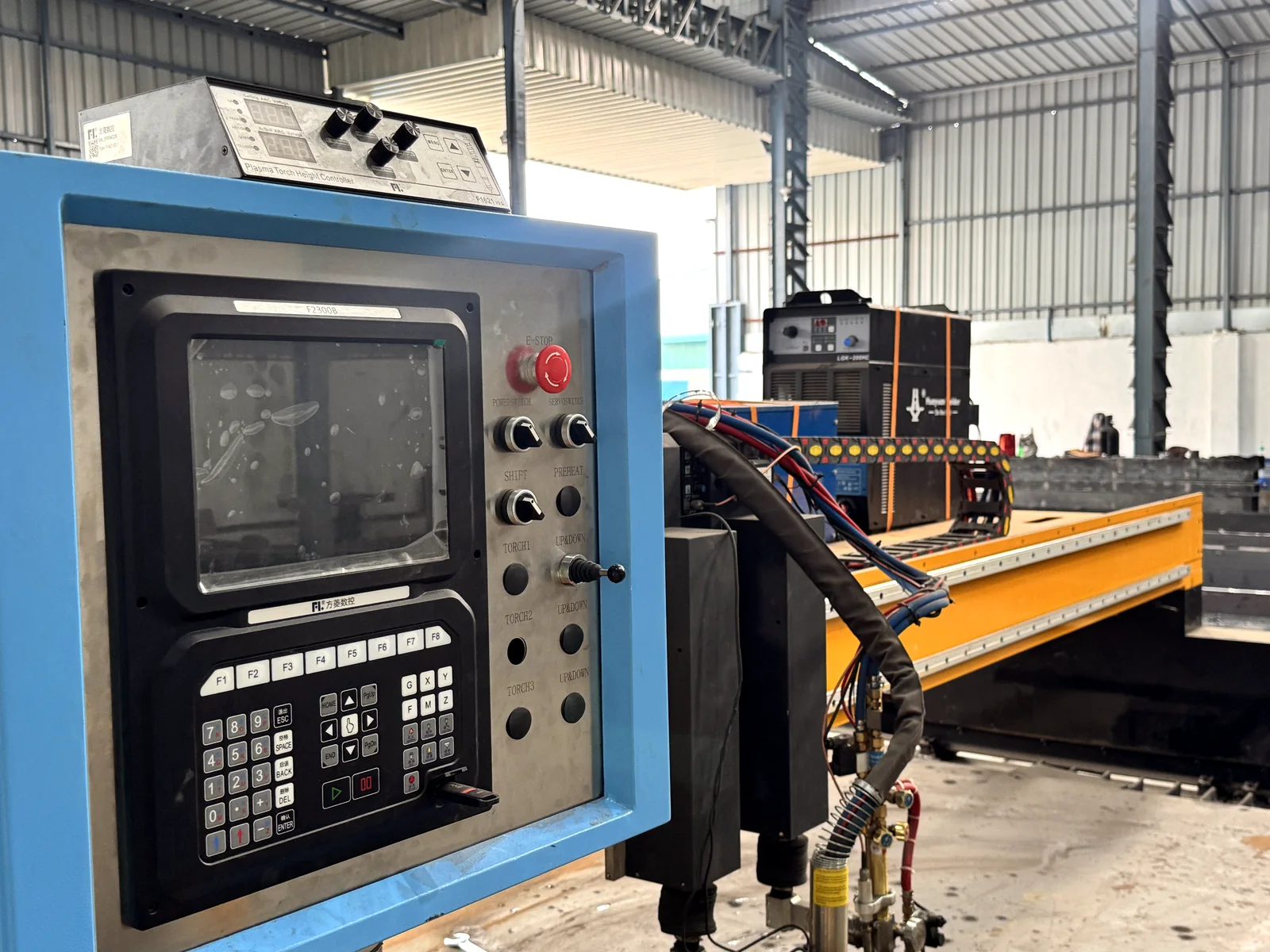

Inside our Chakan facility.
Fabrication and equipment photographed at our Chakan facility.
Procurement inputs that speed review
Share DXF or DWG files, plate grade, thickness, quantity, edge expectation, bend or weld follow-on needs, and delivery timing. Quote-critical tolerances should be confirmed against drawing requirements.
Project details
Scope and requirements.
Send a drawing or scope note. We can review the remaining details with you.
- Maximum cutting bed
- 3000 x 12000 mm multi-axis automated cutting envelope
- Materials
- Mild Steel, carbon steel, high-tensile alloys, and stainless steel plates
- CNC plasma cutting
- Mild Steel plate profile cutting up to 20 mm, subject to drawing, grade, and job setup review
- Oxy-fuel cutting
- Mild Steel plate cutting up to 150 mm for heavy plate work
- Tolerance profile
- Reviewed against the drawing, material, process and geometry. The online cutting estimator starts at 0.5 mm; no blanket tolerance is promised.
- Input formats
- Engineering drawings, DXF/DWG files, nesting requirements, BOQ, plate grade, quantity, and finish notes
Questions
Common questions.
What thickness can you cut?
MS plate profile cutting up to 20 mm on CNC plasma, and up to 150 mm on oxy-fuel for heavy plate. Final feasibility depends on geometry, grade, and the edge quality the drawing needs.
What tolerance can you hold?
Tolerance depends on the drawing, material, thickness and cutting process. The online estimator starts at 0.5 mm; we confirm any quote-critical requirement before accepting the job.
Which file formats do you accept?
DXF or DWG nest directly and are fastest. Engineering drawings, a BOQ, plate grade, quantity, and finish notes all help the review.
Can you cut stainless and alloys?
Mild steel, carbon steel, high-tensile alloys, and stainless plate are all processed. Share the grade with the drawing because it affects the cutting process and edge result.
Discuss your project
Have a drawing or requirement?
Tell us what you need fabricated, the quantity, and where it needs to go.
