Machine mounting fit
Mounting-face flatness and relative height, gantry and drive fitment, and hole position and spacing follow the approved drawing.
Menu
For laser-machine OEMs · Chakan, Pune
Laser machine beds built to your drawing.
Machined rail-mounting flats can be held to 150 µm straightness and mutual alignment across their full mounting length.
ISO 9001 · EN ISO 3834-2 certified
Built at Naxos
A laser-machine bed for an OEM.

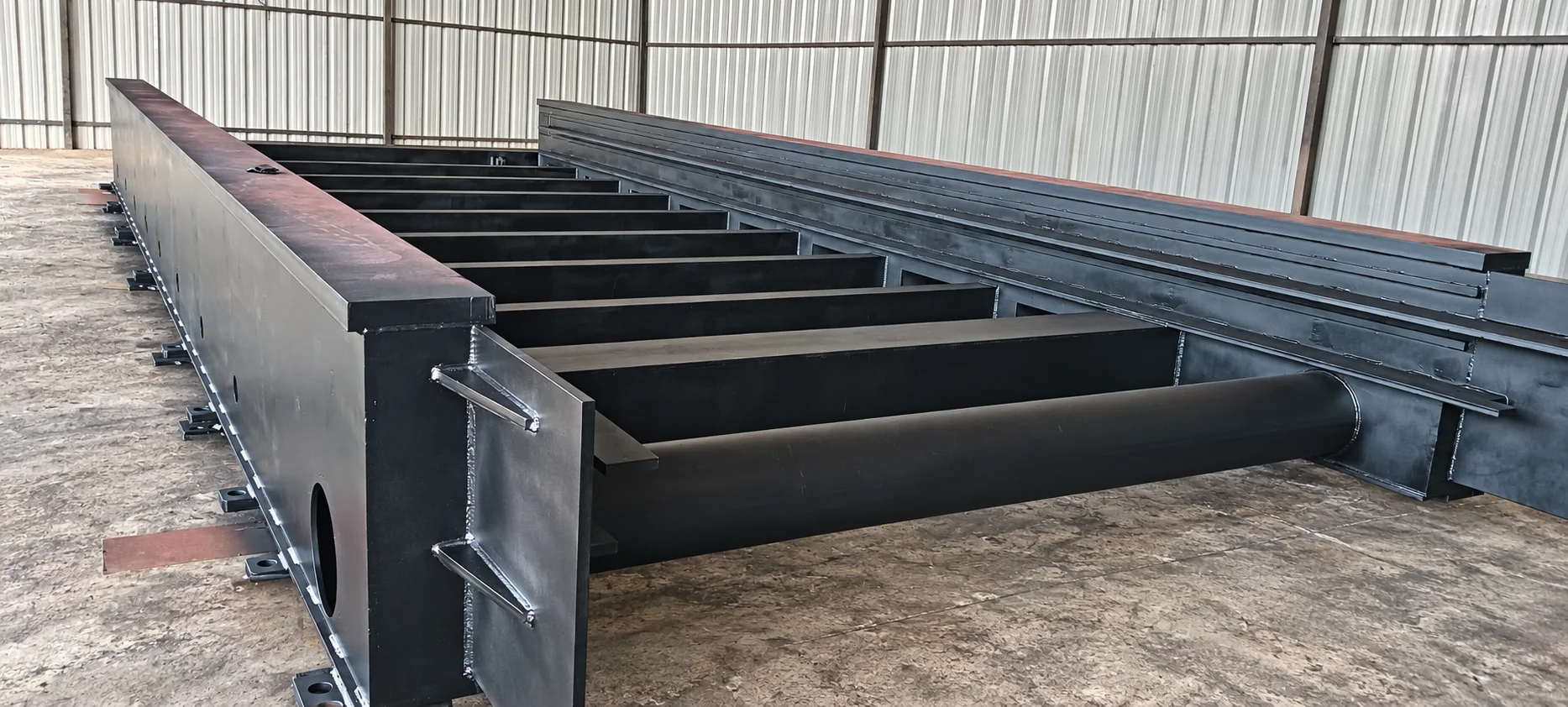

The weldment shown here was produced for a laser-machine OEM. Mounting geometry and paint finish follow its drawing.
3.5 × 8.5 mBed size delivered
13 mLength possible, subject to drawing review
10 MTShop-floor handling capacity
What the OEM needs to fit
Accuracy belongs at the interfaces.
The 150 µm figure applies to the machined rail-mounting flats, not the rails. Other geometry and fitment tolerances follow the approved drawing.
≤150 µm
Rail-mounting flat accuracy
Both straightness of each machined flat and alignment between the flats, measured across the full length where the rails mount.
Whole-bed geometry
Diagonals, relative levels and twist are checked against the design tolerances.
Documented inspection
Specified features are measured before release. A dimensional report is available per drawing.
Laser-OEM gallery
Our work.

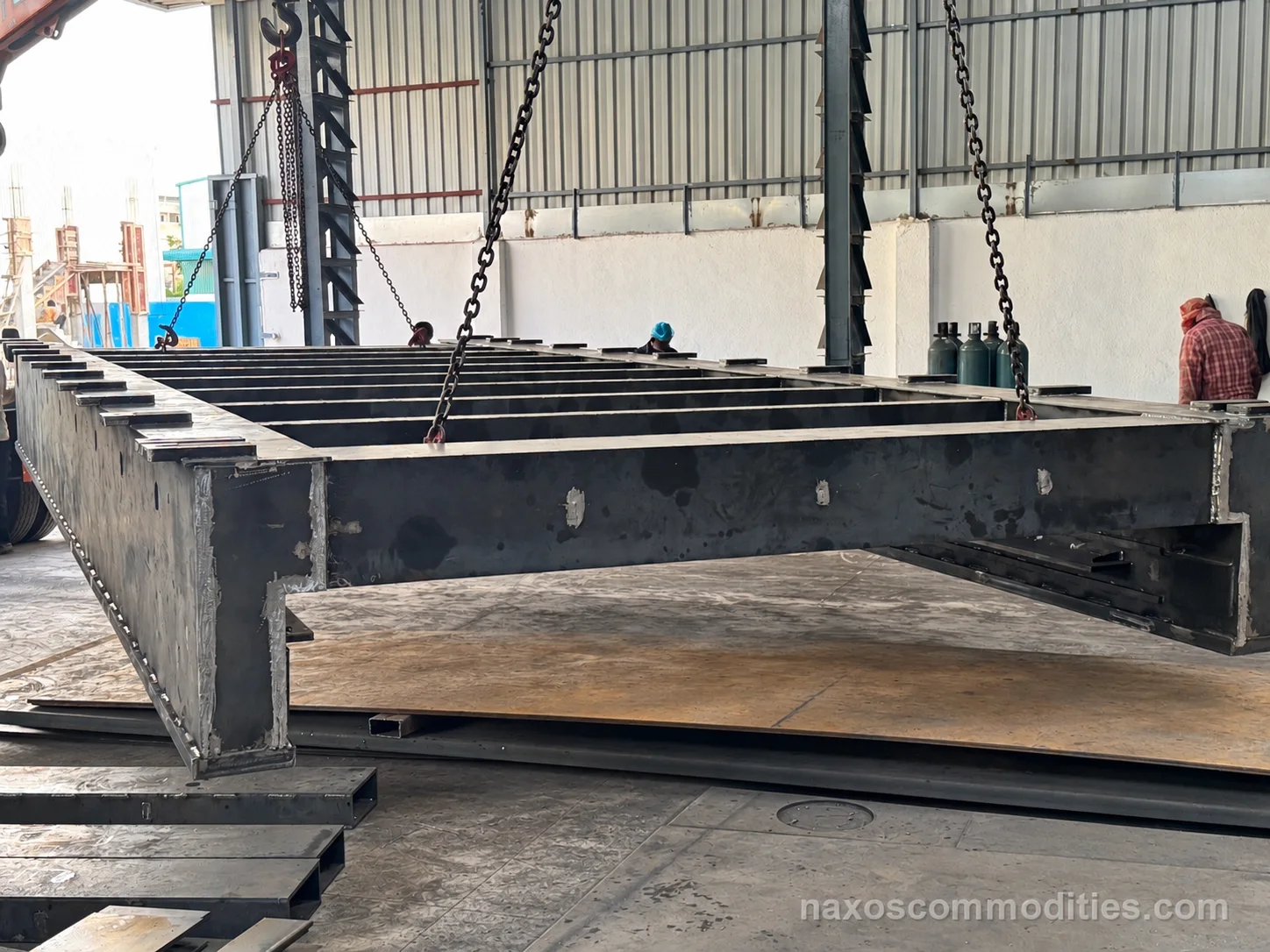

A large bed during fabrication fit-up and a painted base frame from a separate project.
How accuracy is controlled
From drawing to finished laser bed.
The approved drawing defines the critical interfaces. Final dimensions are inspected before release.
- 01Define
Agree the critical geometry
Review the OEM drawing together: rail-mounting flats, datums, mounting heights, hole positions, diagonal and twist limits, inspection points and required finish.
Output · agreed drawing and inspection points - 02Fabricate
Build the weldment
Fit and weld the bed structure to the approved drawing. Include stress relief when the specification calls for it.
Next · agreed machining scope - 03Machine
Finish the assembly interfaces
After welding and any specified stress relief, machine the rail-mounting flats and other reference faces, then drill and tap mounting features from the agreed datums.
Target · faces and hole pattern to drawing - 04Verify & finish
Measure before release
Measure full-length straightness and mutual alignment of the rail-mounting flats, then check specified diagonals, levels, twist and mounting points. The report and paint finish follow the agreed scope.
Release · agreed checks and paint finish
Why machine after welding? Welding can move a large structure. Machining the reference faces and mounts afterward establishes their final geometry on the fabricated bed.
Start with the drawing
Let us review your machine bed.
Send the drawing or CAD file, bed size, rail-flat and mounting datums, critical tolerances, quantity, finish and delivery location.
